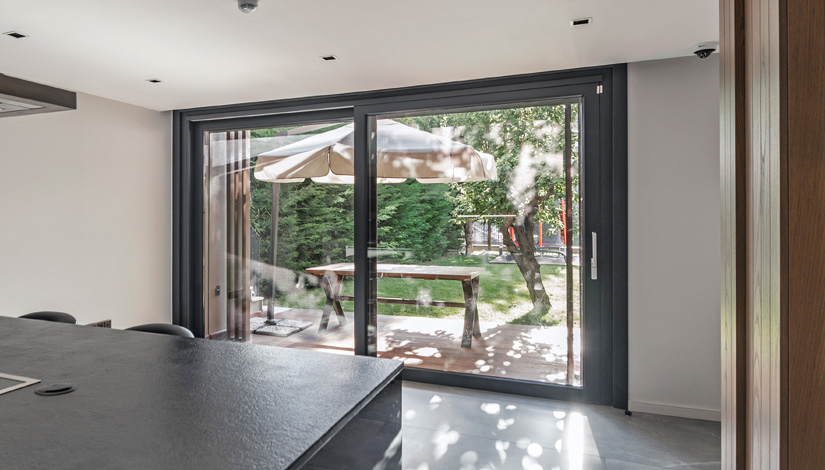

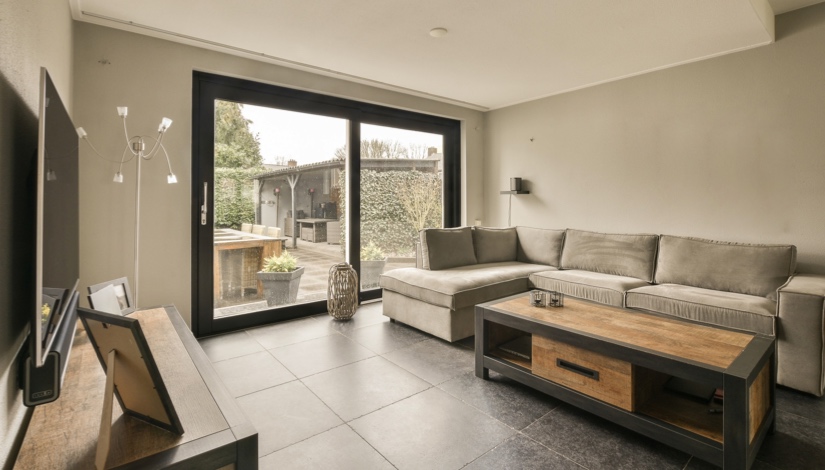

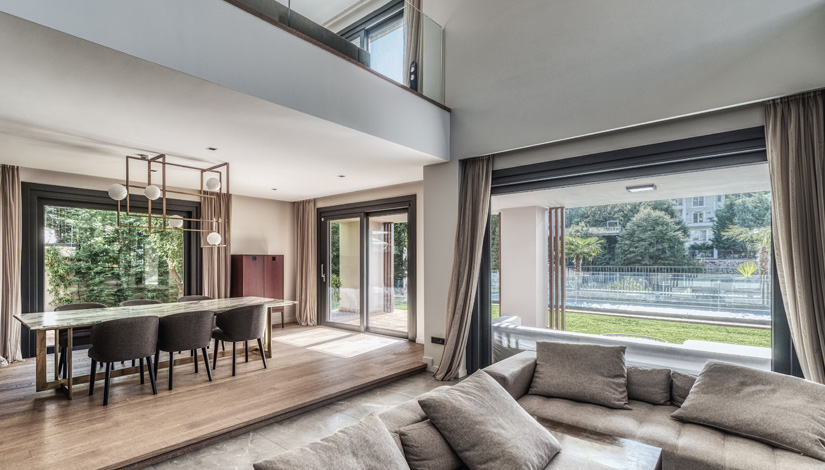

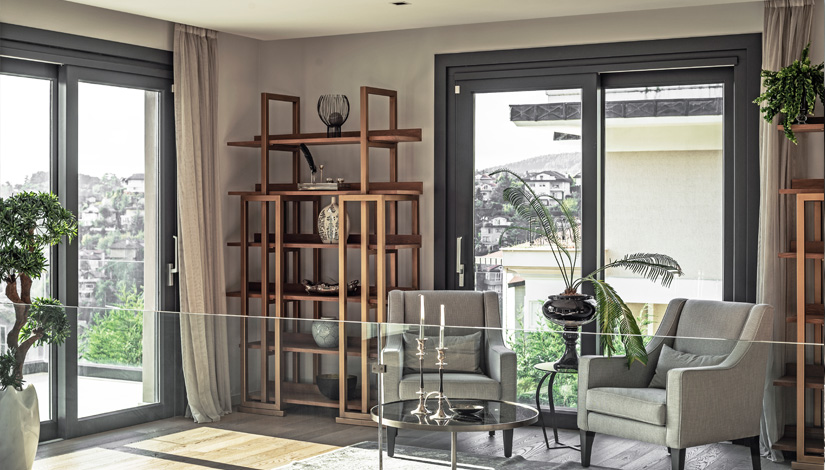

Hebe Schiebe
It invites the scene in spaces such as balcony, terrace, veranda, winter garden by means of usage advantage in wide spans.
- Case Depth has a width of 170 mm and 6-7 chambers.
- To ensure maximum sound and heat insulation with door sash profile width of 70 mm and 5 chambers, it is possible to be used with quality glass between the range of 20, 24, 28, 34, 40mm.
- Wall thickness of the case and sash profile is A class.
- Heat insulation of the aluminium sill profile is ensured with PVC sill closure from inside.
- As the screws used in the mounting of the case profile, may be hidden under the auxiliary profiles; the screws are not visible from outside.
- The case profile is designed so as to be mounted on-site as demounted, in terms of providing ease of transportation and mounting.
- It is ensured that the system can be used in wide spans which the wind load resistance need is more, by means of special bended support plate used in sash profiles.
- Insulation advantage is provided with dual seal used in the conjunction of case and sash.
Product Dimensions
- Case Depth: 170mm
- Window Sash Depth: 70mm
- Number of Chambers: 5, 6, 7
- Profile Class: A CLASS
- Seal System: Interior / exterior seal, hair roving applications
- Seal Type / Colour: EPDM / Colour: Black or grey
- Glass Thickness: 4, 14, 20, 24, 28, 29, 34, 40mm
Colour Options
Laminated Colour/Design Options:
Black Brown
Black Brown
_-_Kopya-837.jpg)
Earl Platinum
Earl Platinum
Anthracite Grey 7016
Anthracite Grey 7016
Anthracite Grey 7016 Smooth 2
Anthracite Grey 7016 Smooth 2
-835.jpg)
Quartz Platinum
Quartz Platinum
Dark Oak
Dark Oak
Mahogany
Mahogany
Walnut
Walnut
Golden Oak
Golden Oak
Winchester
Winchester
Black Smooth 2
Black Smooth 2
Ash C-35 N Smooth
Ash C-35 N Smooth
Flemish Gold
Flemish Gold
Trompet
Trompet
Pyrite
Pyrite
-849.jpg)
Aluminium Brush Effect
Aluminium Brush Effect
Yakisugi
Yakisugi
Black Ulti-Matt
Black Ulti-Matt
Anthracite Grey 7016 Ulti-Matt
Anthracite Grey 7016 Ulti-Matt
Terrene
Terrene
Cream White
Cream White
Turner Oak
Turner Oak
Product Performance
- Profile Heat Transfer Coefficient: 1,5 W/m².K
- Glass Heat Transfer Coefficient: 31(-1,-6)
- Window Heat Transfer Coefficient: 2,57 W/m².K
- Air Permeability: 3
- Water Isolation: 7A
- Wind Load Resistance: C4/B5
- Acoustics Performance: 31[-1;-6] dB
Application Options
Please click on in order to see the PDF document which contains the application options related with the products.
